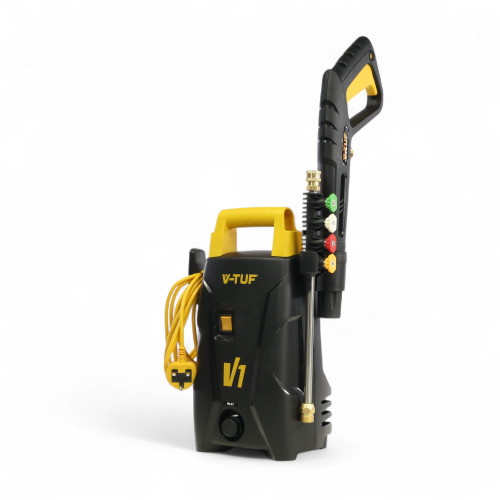

Small but mighty! The V1 from V-TUF is a compact yet powerful, 105 Bar pressure washer, ideal for cleaning outdoor patio areas, dirty site vehicles, garden furniture, driveways, paths, and caravans - the small and affordable option for effective power washing! If you're looking to gently clean your car, or need to remove stubborn dirt from any hard outdoor surfaces, you can't go wrong with the V1240X2.

The V1 boasts a maximum pressure of 1522.9psi, a 1400-watt motor, a self-priming pump, and an assortment of quick-release nozzles (including a turbo nozzle). Also included is a foam cannon and quick-release accessories, making it a compact, powerful, and portable cleaning solution.

Made with a height-adjustable handle, easy-press extended trigger gun, 5M high-pressure hose, 6 nozzle options for jetting, foaming & blasting, for cleaning of a variety of surfaces and dirt types, plus a foaming applicator and bottle for easy application of detergent.

The adjustable push handle provides easy manoeuvrability and accessory storage – great for easy transportation in the back of a contractor’s van.
V-TUF Path & Patio Cleaning Methodology:
1. Deep clean & remove soiling with the Turbo nozzle and foam application gun.
2. Blast & Rinse off any leftover dirt & debris - wide angle jet
3. Preserve and protect - once steps 1 & 2 are completed, apply V-TUF D-GREEN as this will keep your path and patio free from moss & algae for up to 6 months. You can keep applying D-GREEN to keep the green at bay.
The only time you will need to repeat steps 1 & 2 is when your path or patio gets muddy again.

Important rules with high performance electric pressure washers:

1. Don't use standard extension cables, as these cause voltage drops and will burn your motor out!
2. Use 5m electrical cable that the machine is supplied with. (If you really need an extension cable please see the optional extension 'motor saver' cables below)
3. The water supply hose from water source to machine must be the next shortest. Please use anti-kink hose with valveless couplings. (see optional water supply hose kits below)
4. You can go as long as you wish with the high pressure hose (see optional extension hoses below)

OPTIONAL ACCESSORIES for V1 pressure washer SKU: V1240X2 : (Click on the highlighted underlined products below)

Need extension hoses? Choose from the options below, and add to your purchase: (These hoses can be connected to each other for a longer reach).

• 8m extension high pressure hose M22F15 x M22M15 - V3-V5HOSE08XT
• 10m extension high pressure hose M22F15 x M22M15 - V3-V5HOSE10XT (if you require 50m just join 4x of these together to your existing hose)

The following hoses require a hose joiner to connect to your existing hose of your machine:

• Hose joiner M22M15 x M22M15 - B14.4199
• 10m high pressure hose M22F15 x M22F15 - V5-HOSE10M
• 20m high pressure hose M22F15 x M22F15 - V5-HOSE20M
• 50m high pressure hose M22F15 x M22F15 - V5-HOSE50M
• 100m high pressure hose M22F15 x M22F15 - V5-HOSE100M

If you wish to use the MSQ quick release hoses on your machine then you will need to purchase the MSQ quick release adaptors of the outlet of your machine and for the inlet of your trigger gun.

• MSQ female adaptor for the outlet of your V-type pressure washer - B14.400438MSQF
• MSQ male adaptor for the inlet of your V-type trigger gun - M22F15/MSQM
• 10m Hose with MSQ couplings - VTK251610UVYK-HD (if you require 50m just join 5x of these together)
• 20m hose on MANUAL WIND SR1 PORTABLE HOSE REEL with MSQ couplings - V5.132SSC- KIT1MS
• 50m hose on TROLLEY MANUAL WIND V-TUF HOSE REEL with MSQ FITTINGS - V5.1453TR-KIT1

Need different lance lengths to suit the V5-TANDL spray gun which comes with this machine? Choose from the options below, and add to your purchase:

• 100mm Lance (Order these components and assemble them together): B14.9180SS + MB4 + B14.1111
• 500mm Lance with bend with SSQ female coupling - H4.003SSQ(500)
• 700mm Lance with bend with SSQ female coupling - H4.003SSQ(700)
• 900mm Lance with bend with SSQ female coupling - H4.000(900MM)
• 1500mm Lance with bend with SSQ female coupling - H4.000(1.5M)

Need a 'Auto Bright' mini lance kit? Choose from the option below (you will need to order the trigger inlet adaptor too), and add to your purchase:

• Trigger inlet adaptor M22M (15mm ID) x 3/8M SCREW COUPLING - B14.4114
• V-TUF AUTO BRIGHT MINI LANCE KIT (3/8F inlet x SSQF) - TG310ABM

Telescopic lances? Choose from the options below, and add to your purchase (Please note: If you have the standard V-type M22F15 hose, you will need an MSQ B14.4114MSQF adaptor to fit the lances below to your high pressure hose)

• Adaptor M22M15 x MSQF coupling - B14.4114MSQF
• 1.5 meters to 4 meters Telescopic lance - T2.9400
• 2.5 meters to 8 meters Telescopic lance - T2.9800G
• 2.5 meters to 10 meters Telescopic lance - T2.GCX33CF
• 2.5 meters to 12 meters Telescopic lance - T2.GCX42CF

Need alternative lance ends and jets? Choose from the options below, and add to your purchase:

• Jet swivel end (max 120 degree angle) with SSQ couplings - B14.5720
• Soft nylon bristle wash brush tufBRUSH600 with SSQ coupling - H2.021SSQ
• Soft hard wearing bristle wash brush with rubber edging tufBRUSH900 - H2.022SSQ
• Double cleaning impact turbo nozzle head for V-type pressure washer - V3-V5 TURBO NOZZLE

Need surface cleaning heads? Choose from the options below, and add to your purchase:

• 228mm Plastic surface cleaner head without wheels (with SSQ Male connection) - VXB-SSQM
• 280mm Plastic surface cleaner head without wheels (with M22M connection) for V-type pressure washer - VXB

Need a drain/pipe cleaner? Choose from the option below, and add to your purchase:

• 20m Drain/Pipe cleaning hose with spinning jet (comes with M22M fitting to connect to spray gun - VTK11420KM15-3B1FT

Need a professional chemical snow foamer? Choose from the option below, and add to your purchase:

• Snow foam bottle for foam application with SSQ coupling - OPF076TF

Need replacement cleaning detergents? Choose from the option below, and add to your purchase:

• 5 litre vehicle WASH & SHINE concentrate & snow foam - VTC620-5L
• 20 litre vehicle WASH & SHINE concentrate & snow foam - VTC620-20L
• 5 litre WASH & SHINE retainer concentrate (PH neutral) & snow foam - VTC120-5L
• 20 litre WASH & SHINE retainer concentrate (PH neutral) & snow foam - VTC120-20L
• 5 litre Heavy Duty TFR for machinery cleaning, use neat on oil patches on stone paving or block paving - VTC320-5L
• 20 litre Heavy Duty TFR for machinery cleaning, use neat on oil patches on stone paving or block paving - VTC320-20L

Need to get the green algae off fragile surfaces or surfaces difficult to pressure wash? (Just apply with a sprayer and let it dry) Choose from the option below, and add to your purchase:

• 5 litre V-TUF D-GREEN GARDEN SURFACE CLEANER - VDG5L
• 20 litre V-TUF D-GREEN GARDEN SURFACE CLEANER - VDG20L
• 2 litre Professional multi chemical resistant sprayer - VTX-2L
• 10 litre Professional multi chemical resistant sprayer with telescopic wand - VTX-10L-KIT1

Recommended extension 'motor saver' cables. Choose from the options below, and add to your purchase

• EXTENSION LEAD ' Motor Saver' - 20M 240VOLT 2.5mm (13AMP) - I10.1620

Recommended anti-kink hose with valveless couplings optional water supply hose kits. Choose from the options below, and add to your purchase:

• 15m WASHFLEX PRO water supply hose and valveless KCQ coupling kit - BF1215-KIT1

• 50m WASHFLEX PRO water supply hose and valveless KCQ coupling kit - BF1250-KIT1

Recommended spare parts to keep on site. Choose from the options below, and add to your purchase:

• Spare SSQ coupling seal - B14.50PT
• Spare MSQ coupling seal - B14.80PT
• Spare M22 (Thinner) seal - T4.015
• Spare M22 (thicker) seal - B13.273

Industries:
•DIY •Gardening

Areas of Application:
• Motorcycles & Scooters • Garden Decking & Fences • Garden Furniture • Small Cars & Vehicles • Bicycles

FAQ's: Frequently asked questions on V1 pressure washers:

1. How to winterize your pressure washer:

1. Disconnect the machine from the water supply hose.
2. Remove the high-pressure hose from the trigger lance unit.
3. Hold the Trigger lance unit with the jet end at the highest point and pull the trigger and allow all the water to drain out.
4. Plug the pressure washer into the power supply and turn it on for 30 seconds to pump all the water out the pump.
5. Using antifreeze will give you maximum protection - RV antifreeze or "pump saver" antifreeze is recommended to protect against freezing damage, as it's specifically designed for small engines and doesn't harm seals. (Some people use windshield washer fluid, but it's not ideal for the seals inside the pump)
6. To fill with Antifreeze: Use a funnel or a method to suck the antifreeze into the pump by turning the machine on.

2. When one of the coloured jets are in, the water sprays all over instead of out the jet.

Answer:

• The seal in the quick release coupling is either damage or missing and needs replacing.
• Replace V1 jet coupling seal: SKU: B14.50PT -  Video on how to replace the V-TUF SSQ coupling seal

3. My V1 machine is not running or not running properly.

Answers:

• This can be a number of things: 1. The electrical power source is not sufficient for your machine. 2. The transformer or the extension cord is not suited to your machine. 3. One of the jets are blocked or partially blocked. 4. The inlet filter needs cleaning. 5. Your water supply is insufficient due to valves in the couplings in the supply water hose, your water supply hose is kinked or damaged or the water is not switched on.
• Step 1: Disconnect all water hoses (to and from) and extension cables from your pressure washer.
• Step 2: Check that your machine voltage is the same as the electric supply. (110 volt is normally a yellow three pin plug) or (240 volt is normally the standard 13amp household three pin plug or a blue three pin 16amp plug). If you are using a 110 volt transformer try the machine on an alternative one.
• Step 3: Switch the machine on for 20 seconds and you should hear the motor running smoothly.
• Step 4: Switch on the water supply to your machine and see of the water flow is sufficient (Remember there must not be any stop valves in the water couplings)
• Step 5: Check if the inlet filter to your machine is clean and free of any debris.
• Step 6: Connect the water supply to your machine (you should notice water coming out of the high pressure hose connection) and switch the water supply on and switch the machine on for another 20 seconds.
• Step 7: Fit the high pressure hose and spray gun and fit the BLACK low pressure jet in the end of the lance and run the machine for 20 seconds.
• Step 8: Fit the RED high pressure jet in the end of the lance and run the machine for 20 seconds.
• If all runs well up to step 8 then the jet you were using is either blocked or partially blocked, so please dislodge the blockage and rinse it out the jet.

4. What accessories can I attached to my V1 pressure washer?

Answer:

• Look at the V1 pressure washer web page on www.v-tuf.co.uk and study the information or call 01522 787978
