20M V-TUF Retractable tufREEL - Stainless Steel - V5.2200

SKU: V5.2200
£669.23 Ex VAT (£803.08 Inc VAT)

SAVE TIME * SAVE MONEY * INCREASED SAFETY * LONG HOSE DURABILITY * EFFICIENCY IN DAILY WORK * Made in the EU

  • Please see the images or the document tab below for the dimensions of this reel.
  • Suitable for the following hose internal bore sizes: 1/2 , 3/8 , 5/16 , 1/4
  • Suitable for water and air.
  • Comes standard with 200 Bar max rated swivel (Optional 400 Bar swivel)
  • Max fluid temperature: 155°C
  • Stamina Recoil Tech - Durable recoil mechanism
  • Auto Lubricating 4 roller guide - hose can be pulled from many angles,
  • Adjustable hose guide arm
  • Wall and floor mount.

Common Parts & Accessories:

Common replacement Parts:



Availability: In Stock

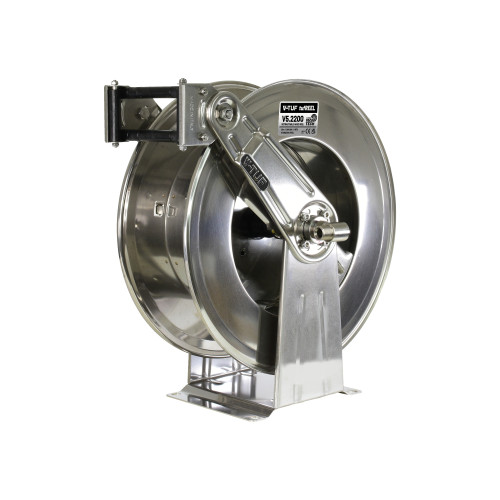

V-TUF commercial and contractor specification, self-retractable 20m hose reel of Stainless steel construction and proven design. The V5.2200 hose reel has a maximum rated pressure of 600 BAR. It comes standard with a swivel of a working pressure of 200 Bar (3000PSI), an optional 400 BAR swivel can be fitted. The uniquely constructed ‘4 ROLLER V-TUF HOSE CARE GUIDE ‘ that reduces the need for swivel mount brackets as the hose can be pulled from any angle. This reduces wear and the space taken up in the hose reel area. Alternative to Faicom VL4H3820 Torino Renato Stainless Steel Retractable Hose Reel for Water.

  • Please note: the reel comes without hose. If you wish to order a hose – Please select the hose and recommended products from the detail below / scroll down & select a hose and recommended fittings from the RELATED PRODUCTS (below)
  • Recommended products (If you wish to order a unit with hose): 1x WFB23820FFYKB 20m BLUE HOSE 3/8F x 3/8F or for a more flexible hose you can use WFB51620FFYKB 20m BLUE HOSE 3/8F x 3/8F ; 1x MB6/MB8 1/2M x 3/8M adaptor. If you would like a connecter hose order from your pump to reel: 1 x MB6/FB8 ; 2 x W6 and WFB23805FFYK 5m BLUE HOSE 3/8F x 3/8F or any other hose selection. Please note: NO more than 20m of hose must be used on the reel drum, as this will cause damage to the recoil spring.
  • Dimensions: Height: 560mm ; Width (including swivel): 260mm ; Length (hose drum diameter) : 440mm
  • 1/2 BSP female INLET
  • Hose drum inlet: 1/2 BSP female and a ½ male x ½ male adaptor supplied with ½ brass sealing washer. (It is advisable to fit a hose with s 3/8BSP F to drum with a MB6/MB8 3/8m x ½ m nipple and 1x W6 3/8 sealing washer).
  • Please note: Due to product development, specifications can change without notice and images are for illustration only. E&OE.
