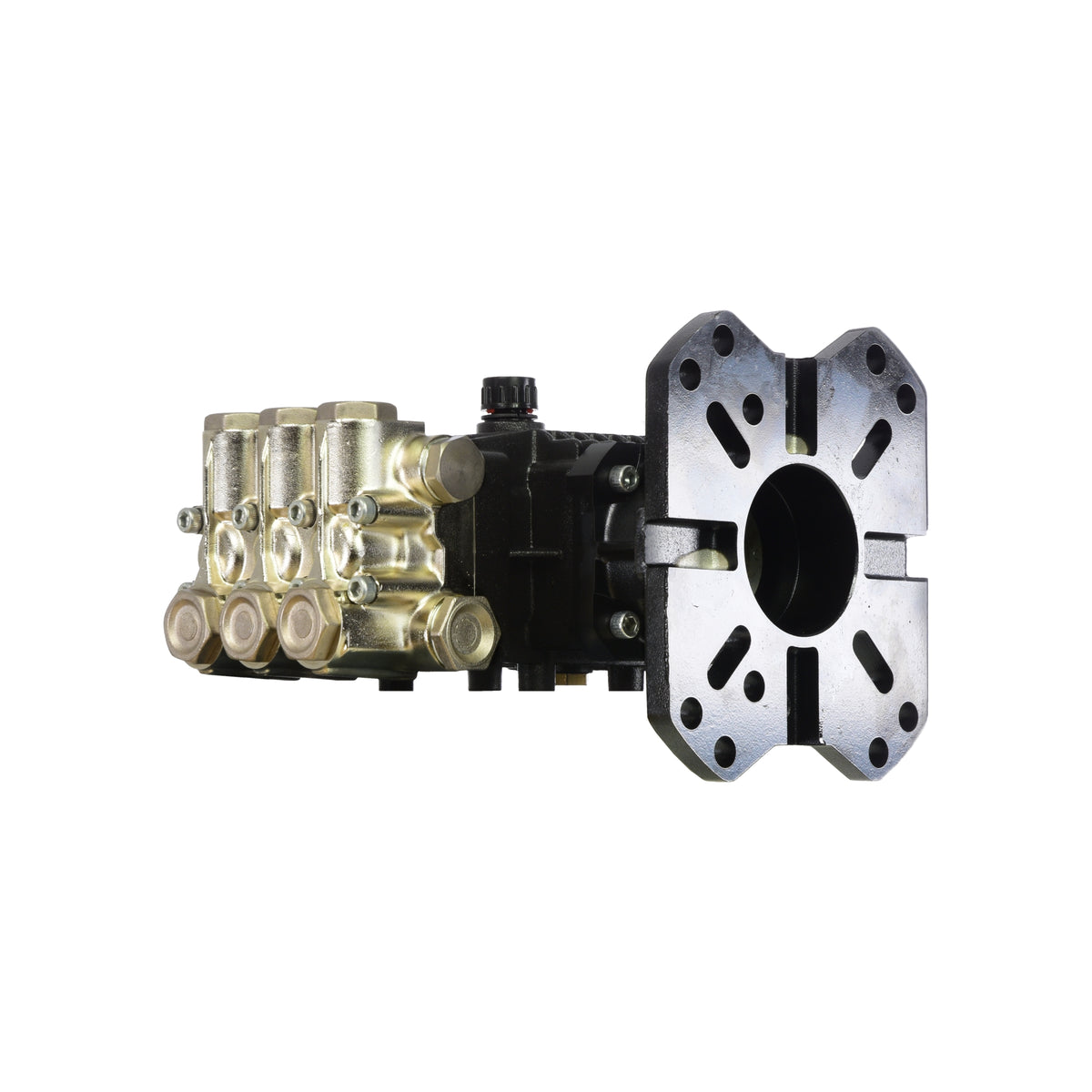

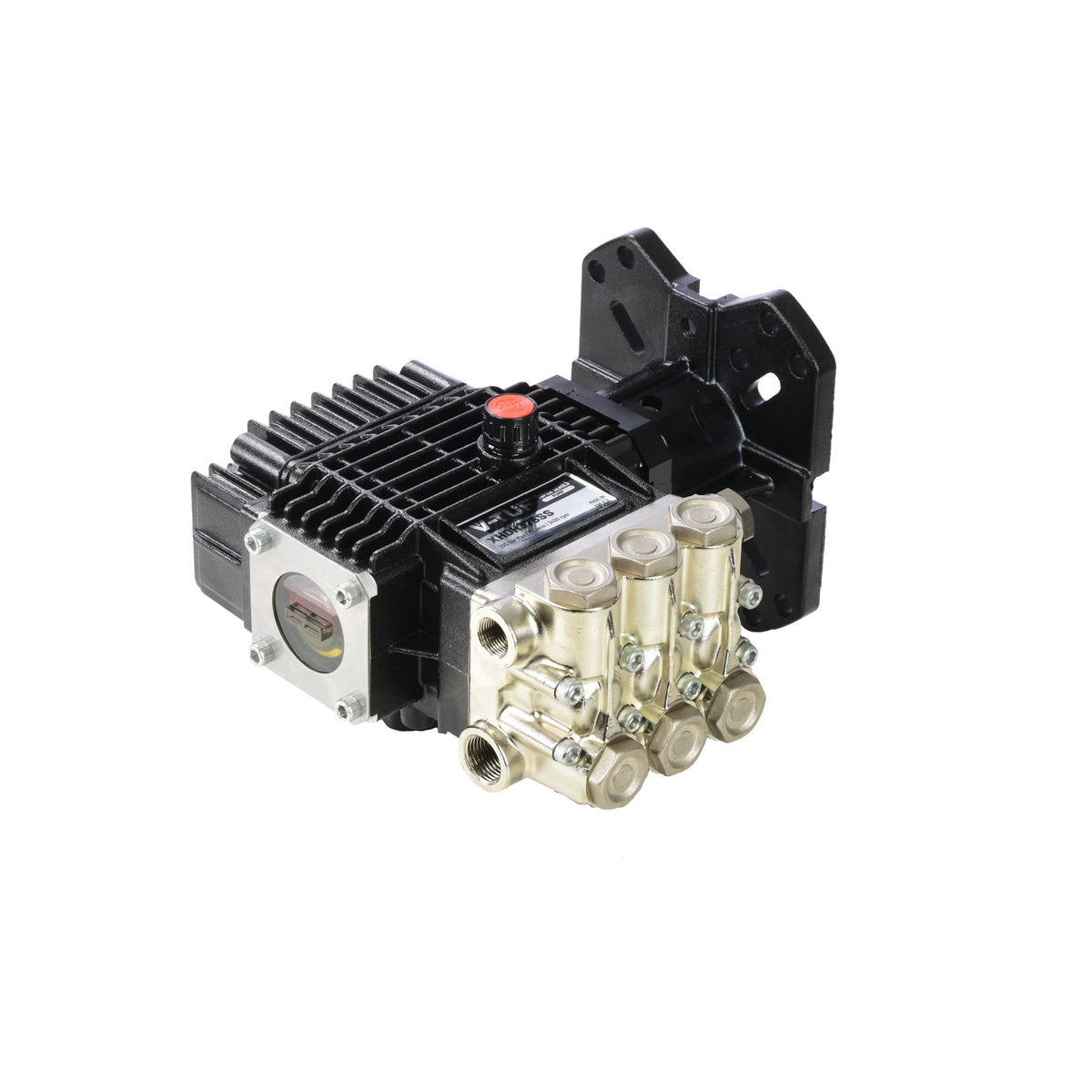

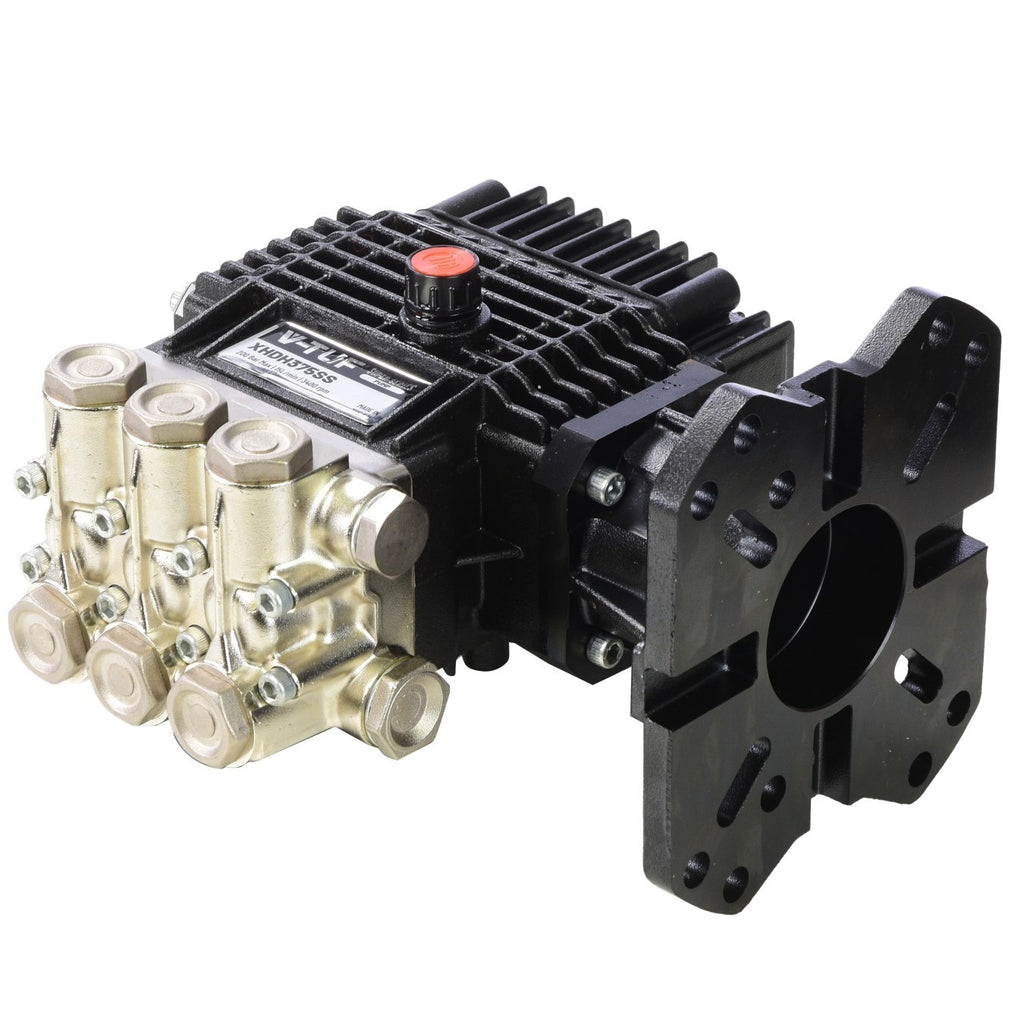

PUMP - V-TUF SUPER SERIES XHDH375SS 200BAR 15L/MIN 1" HOLLOW SHAFT - XHDH375SS
PUMP - V-TUF SUPER SERIES XHDH375SS 200BAR 15L/MIN 1" HOLLOW SHAFT - XHDH375SS
Key Features
- 15 L/MIN AT 200 BAR – V-TUF Super Series hollow shaft pump for Honda GX270, GX390 and Loncin VLCP15 engines
- 1" HOLLOW SHAFT – bolts straight onto compatible engine crankshafts, no gearbox needed
- NICKEL-PLATED SOLID BRASS HEAD – greater heat and weather resistance for outdoor site use
- CATAPHORETIC COATED BODY – die-cast aluminium with corrosion-resistant surface treatment
- GENUINE V-TUF PUMP – direct replacement for WW961 and VT6 pumps, supplied from our Lincoln warehouse
Description
V-TUF Super Series XHDH375SS Hollow Shaft Pump 200 Bar 15 L/min 1" Hollow Shaft (XHDH375SS) is a Super Series hollow shaft direct-drive pump delivering 15 L/min at 200 Bar at 3400 RPM, with a nickel-plated solid brass pump head for greater heat and weather resistance. Replacement for the WW961, 961, WS430080005-S, and VT6 pumps.
For: Engine-driven pressure washers using Honda GX270, GX390, V-TUF VLCP15 petrol engines or V-TUF VD10L100, VLCD10 diesel engines requiring a direct-coupled 200 Bar hollow shaft pump. 9HP required to run at full pressure.
Key specifications:
- Flow: 15 L/min
- Pressure: 200 Bar
- Speed: 3400 RPM
- Shaft: 1" (25.4mm) hollow
- Construction: Die-cast aluminium alloy with cataphoretic corrosion-resistant coating
- Compatible engines: Honda GX270, GX390; V-TUF VLCP15; V-TUF VD10L100, VLCD10 diesel
What's included:
- 1x XHDH375SS hollow shaft pump
Important: Always ensure the driving motor runs at least 15% within its maximum amperage. Fill with V-TUF Pressure Lube before first run. Service kits: seal kit VTPKIT7, valve kit VTPKIT2, sight glass VTPSSGSS.
Support: See the Pump Spare Parts page, or call our Lincoln service team on 01522 787978.
Genuine V-TUF part, supplied from our Lincoln warehouse.
Specifications
- Motor type
- Honda
- Fuel type
- Petrol
- Shaft size
- 1" hollow
- Speed (RPM)
- 3400
