PUMP - V-TUF SUPER SERIES XHDM500SS 300BAR 15 L/Min 1450RPM 24mm MALE SHAFT - XHDM500SS

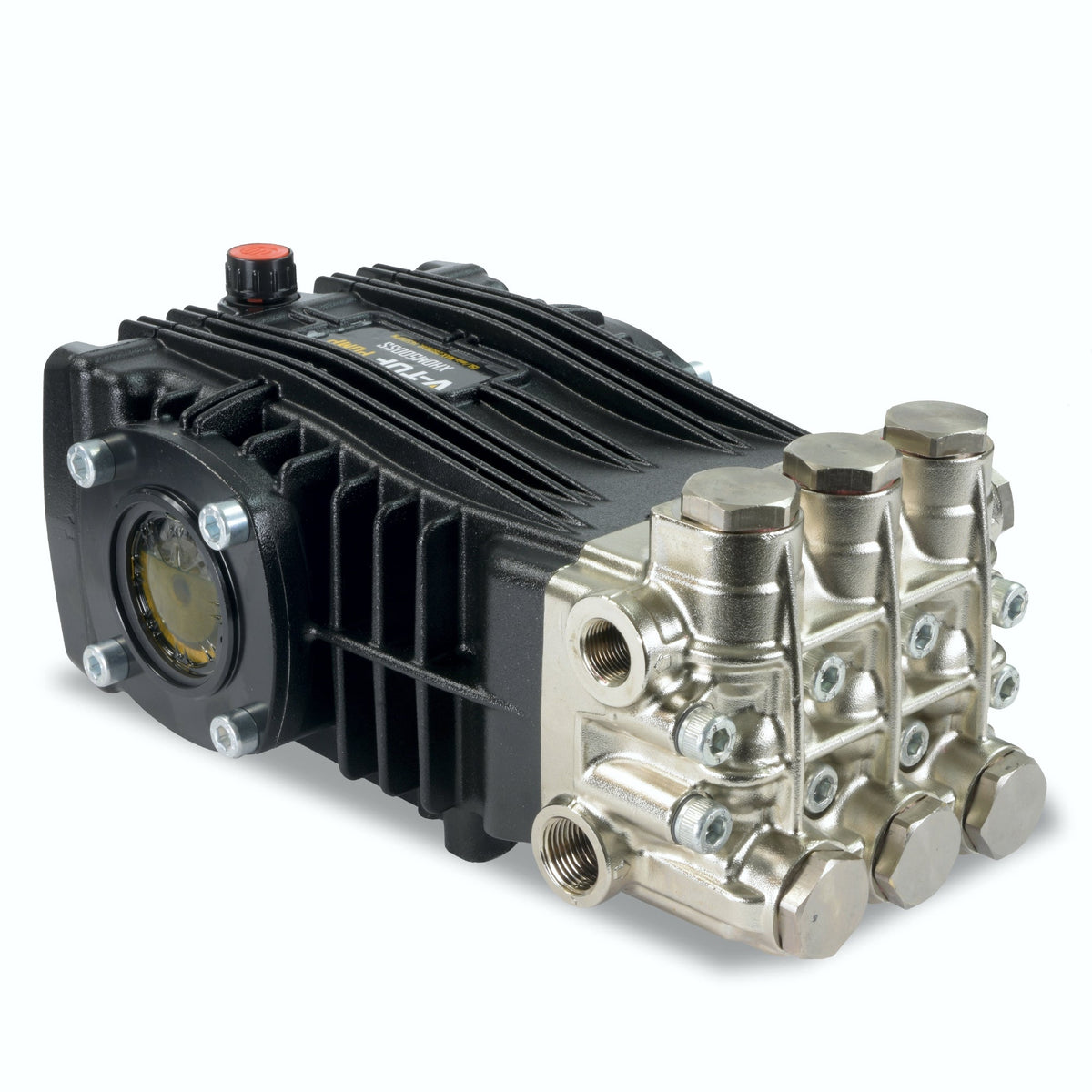

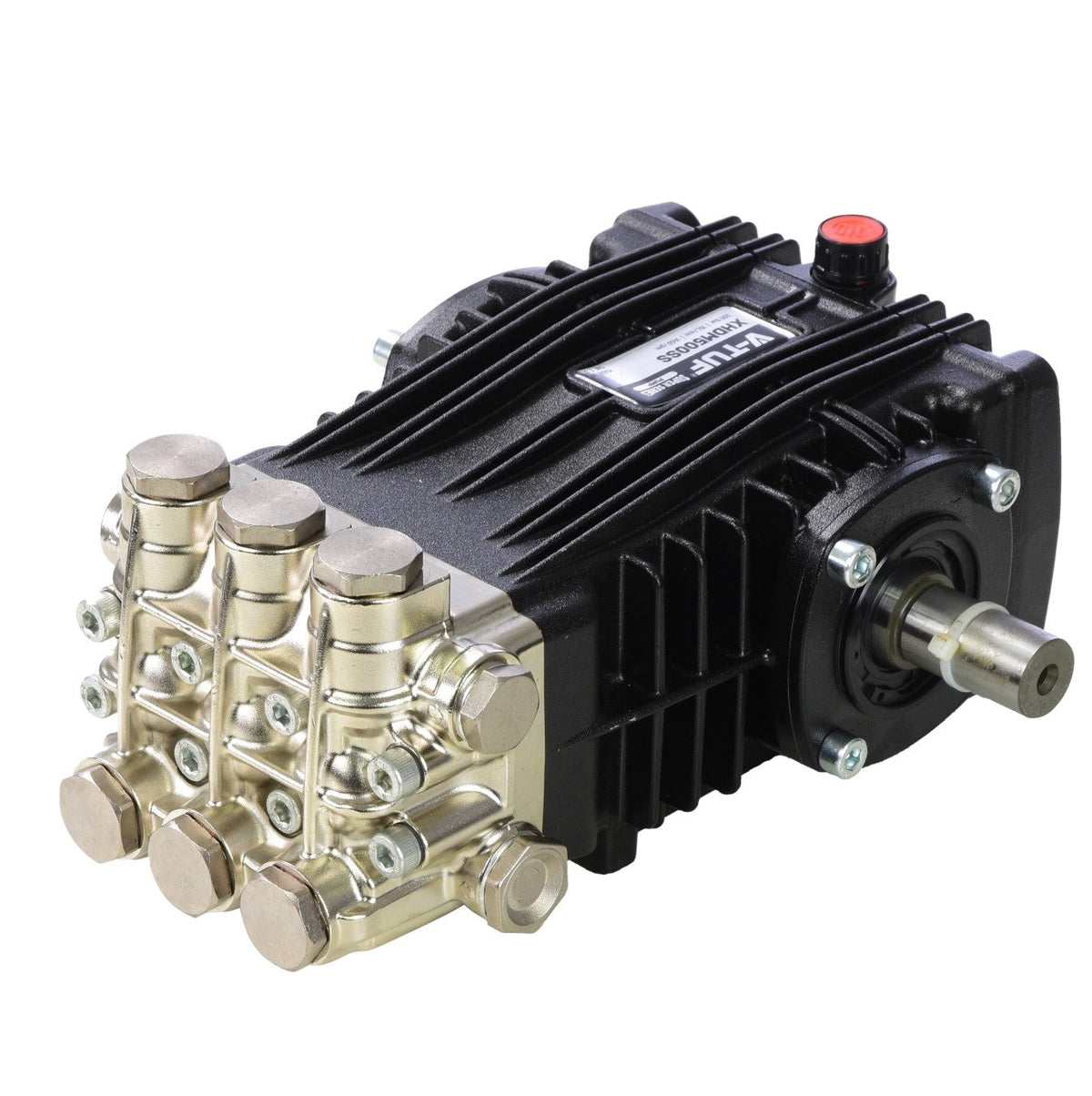

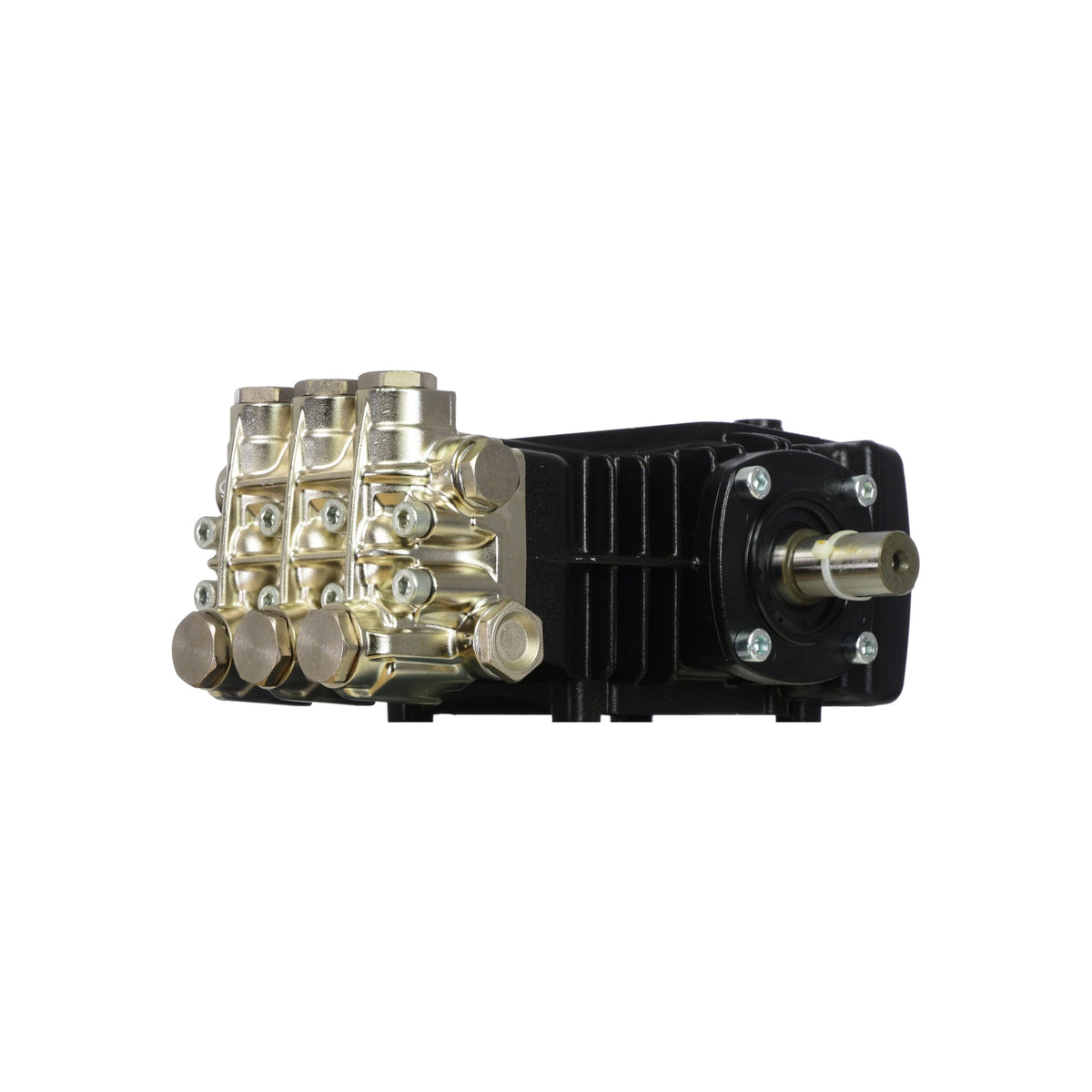

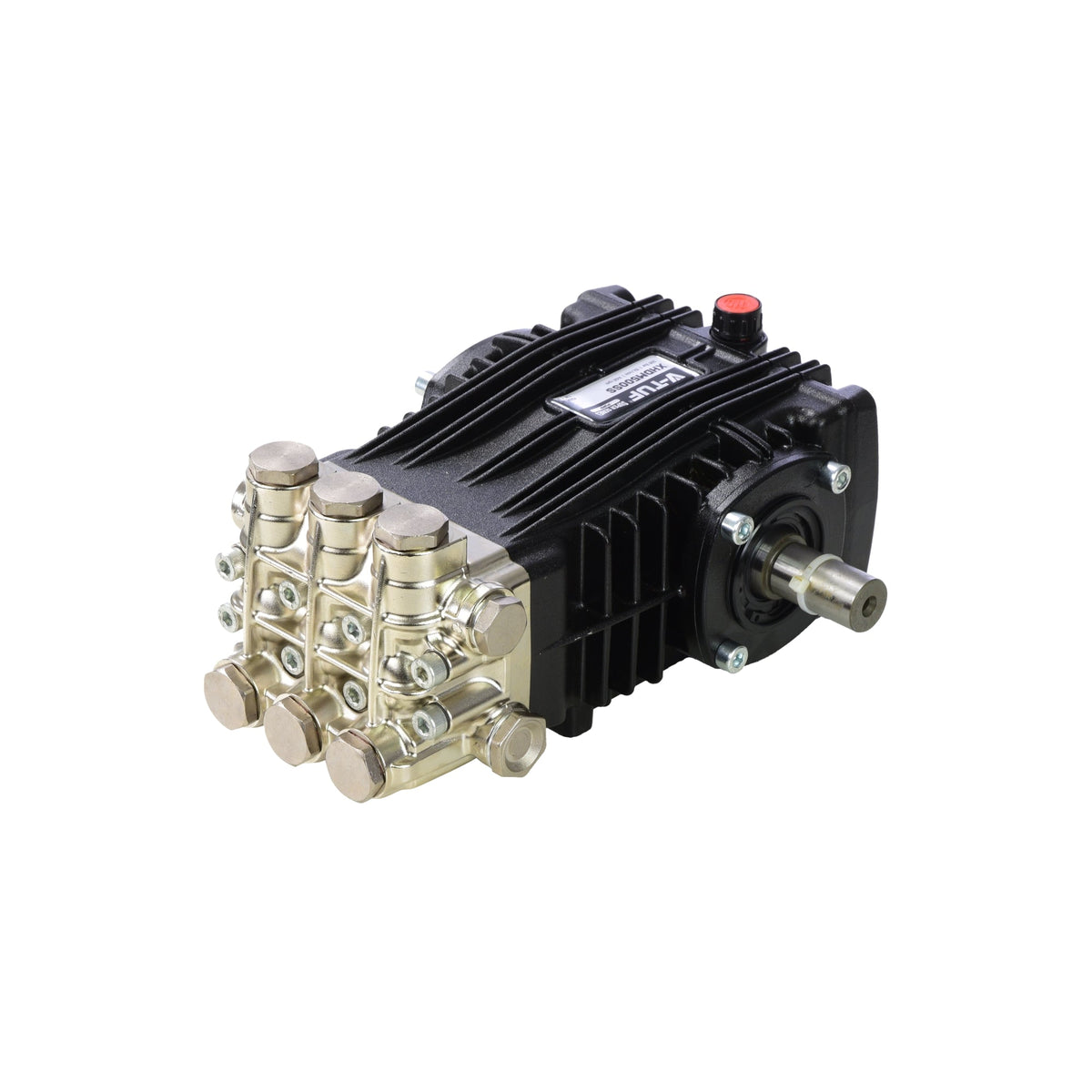

V-TUF Super Series XHDM500SS Solid Shaft Pump 300 Bar 15 L/min 1450 RPM 24mm Male Shaft (XHDM500SS) is a 4100 PSI-rated Super Series triplex pump with 24mm solid shaft, delivering 15.7 L/min at 280 Bar at 1450 RPM. Die-cast aluminium body and cover, oil drain outlet and sight glass, dipstick oil level cap, and pressed high-strength steel pump shaft.

For: High-power engine or electric motor-driven pressure washer installations requiring a 280-300 Bar pump at 1450 RPM. 10HP required to run at full pressure. Sometimes used on TORRENT 3GB and TORRENT 3RGB pressure washers.

Key specifications:

• Flow: 15.7 L/min
• Pressure: 280 Bar (4100 PSI)
• Speed: 1450 RPM
• Shaft: 24mm solid
• Compatible motor: MH.4175
• Compatible gearbox: XHDG500 (for 1" shaft 13-15HP engines)
• Ports: 2x inlet 1/2" F BSP (one blanked), 2x outlet 3/8" F BSP (one supplied with blanking plug)
• Suitable replacement for: Interpump WS201, V-TUF VT301, AR RK 15.20H, V-TUF XHDM400

What's included:

• 1x XHDM500SS pump (unloader valve not included)

Important: Most mains water supplies cannot cope with 15.7 L/min — running on suction from a water butt or tank is advised if unsure. Always ensure the driving motor runs at least 15% within its maximum amperage. This pump is NOT supplied with an unloader valve and MUST be fitted with one before operation. Service kits: valve kit VTPKIT30, water seals VTPKIT28, piston oil seals O.SEAL2A, pistons VTPKIT120571, valve cap VTPS1603H5, oil PL500.

Safety — before powering the system:

1. The unloader valve MUST be set to minimum pressure.
2. The bypass port MUST be open.
3. Set the unloader to the required pressure, which MUST be less than both the unloader's maximum rated pressure and your equipment's maximum pressure (do not exceed 280 Bar / 4100 PSI).
4. Set the locking nuts so the running pressure and lock line pressure cannot be exceeded.

Caution: this is high pressure equipment. Failing to follow the above safety and set-up rules can cause serious equipment damage and injury — caps and joints can be blown clean out of their threads, creating dangerous projectiles. Call 01522 787978 if you need assistance.

Support: See the Pump Spare Parts page, or call our Lincoln service team on 01522 787978.

Genuine V-TUF part, supplied from our Lincoln warehouse.
